Description :

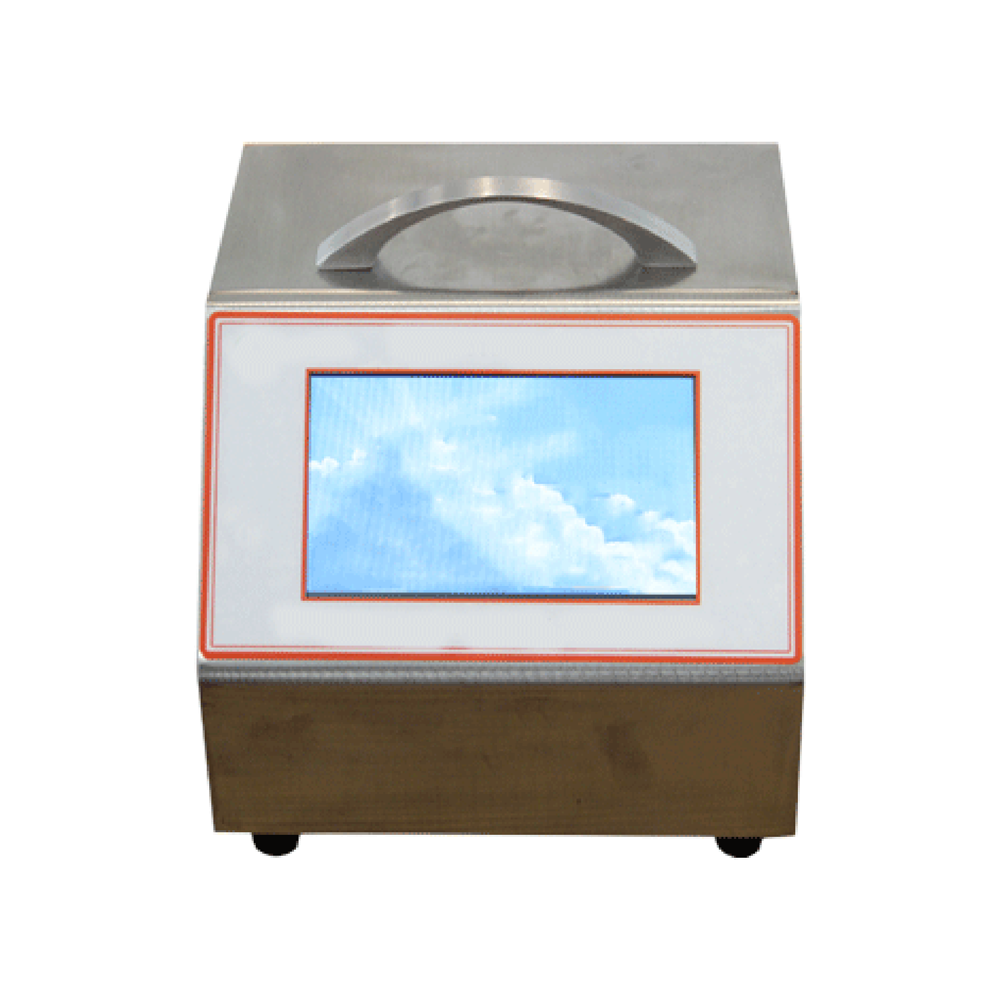

Airborne Particle Counter TRAP-601is a six-channel control unit that includes a thermal built-in printer for direct printing of pre-recorded and current data for user convenience. The software generates data files for viewing or exporting to a computer Excel spreadsheet. The counter can store up to 1000 data samples. It has an LCD that displays the parameter ranges and particle concentration of up to 2.83 l/m.
Specification
| Flow Rate |
2.83L/min (Imported Pump) |
| Size Channels |
0.3, 0.5, 1, 3, 5, 10 μm |
| Maximum Rated Particle Concentration |
35000 particles/L ( μm ) |
| Environmental Temperature |
10 ˚C t035 ˚C |
| Light Source |
Laser Diode (30, 000 hours Mean Time Between Failures) |
| Sample Time |
1 to 10min (Selectable) |
| Printer |
Built-in Thermal Printer |
| Zero Count |
10min |
| Location Labels |
0 to 999 |
| Humidity |
90 to 95%RH |
| Data Storage |
1000 Samples |
| Display |
LCD |
| Atmosphere Pressure |
86 Kpa to 106Kpa |
| Operating Time |
8 hours |
| Maximum Consumption |
LCD |
| Power Source |
10W |
| Weight |
AC 220V ± 10%,50Hz |
Features
- A large LCD showing the particle count for all channels
- It has a built-in thermal sensitive printer
- The illumination inside the device is a beam diode
- Particulate detects the presence using a laser sensor
- The counter has a storage capacityof 1000 samples
Application
It is widely used in microelectronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, and aerospace, among other fields.
