Description :

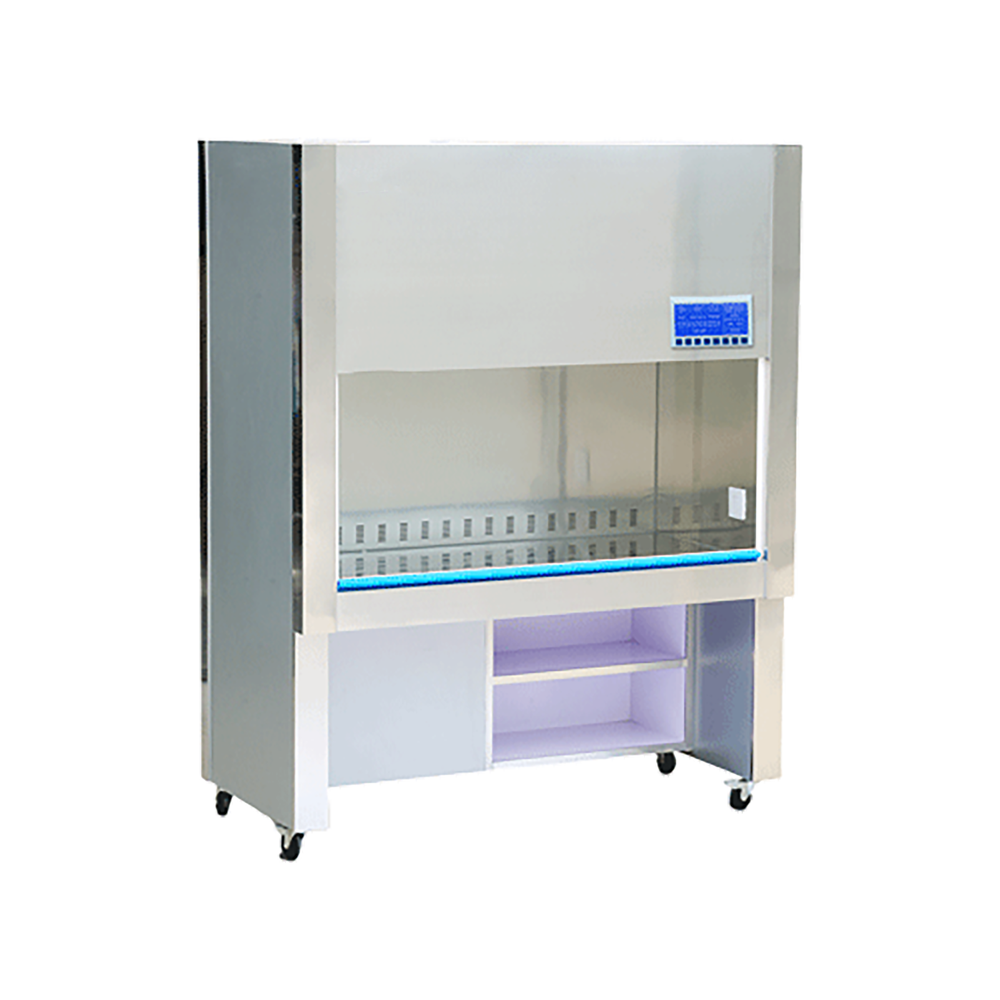

Biological safety cabinet TRBC-604is effective in terms of the need for protective measures. It features a stainless steel work area with a sliding door. It has an average wind speed of 0.35 + -0.025 m/s within the chamber. It has a UV lamp as well as a high-efficiency air circulation filter. It has a digital display panel and an air insulation design to keep cross-pollution to a minimum both within and outside the cabinet.
Specification
| The Average Wind Speed- Inner Side |
0.38 + -0.025m/s |
| The Average Wind Speed- Middle |
0.26 + -0.025 m/S |
| The Average Wind Speed-Inside |
0.35 + -0.025 m/s |
| Air Tightness |
<=10 – 6 m/S 500 Pa leakage rate |
| Noise |
≤62 dB |
| Power Supply |
AC, 220 V/50 Hz |
| Illumination |
≥300 LX |
| Half Ventilation Peak Value |
≤ 5 μm (XYZ direction) |
| Specification And Number Of Light FromFirefly/ Ultraviolet Light |
16W×2/15W 2 |
| Suited Number |
Double single |
| Efficient Filter Specifications And Quantities |
1335×600×38mm ×1 |
| Maximum Power Consumption |
600 W |
| Weight |
250 Kg |
| Dimension Of Working Area(W1×D1×H1) |
1340×650×600 mm |
| Overall Dimension W×D×H |
1540×800×1950 mm |
Features
- Winds protection is used in the design to avoid cross-pollution both inside and outside
- It is versatile and easy to locate
- It has a special filter on the ventilation system to ensure that the air that is released into the atmosphere meets standards
- The four-contact switch adjusts voltage to maintain an optimum airspeed in the workplace at all times
- An LED panel controls the system
- It has a double single dimension to it
- The work surface is made of 304 stainless steel
Application
It is required in animal curing labs and is used in fields like medicine, pharmacy, and scientific research.
