Description :

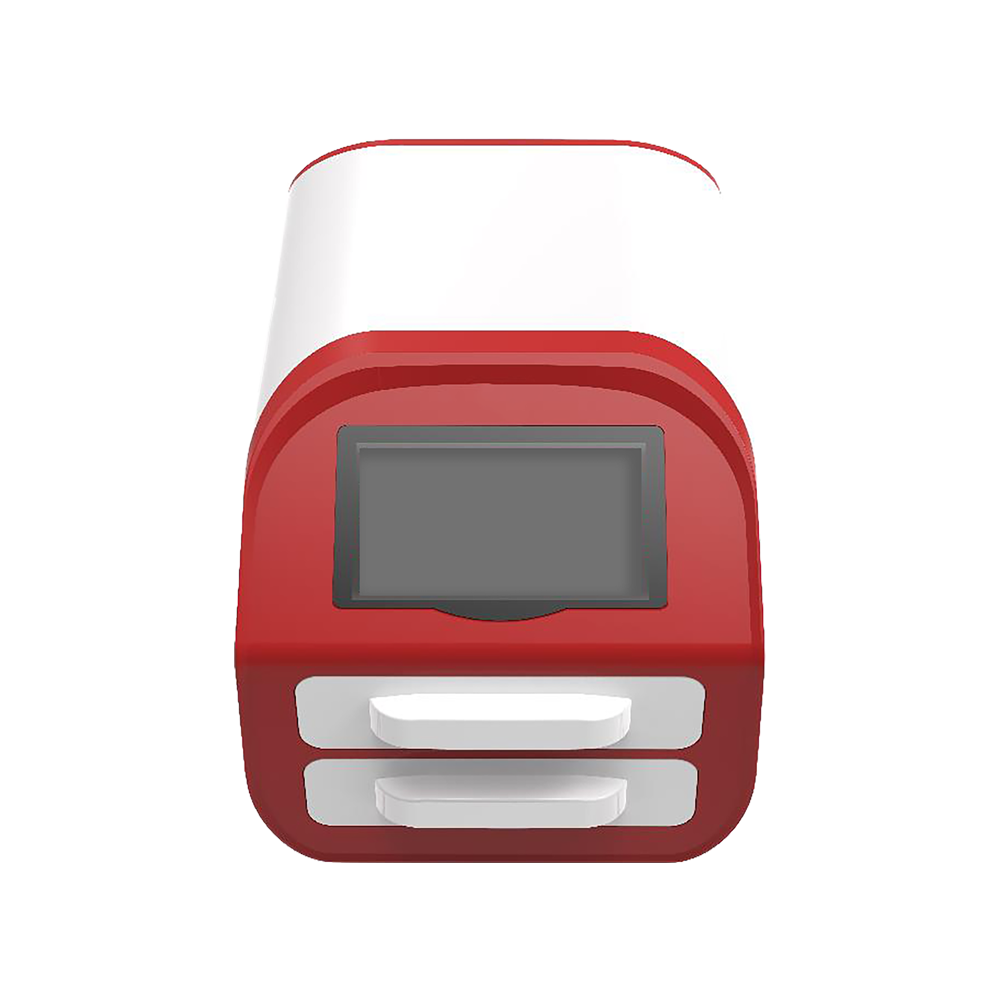

Fast Semi-dry Blot System TRSB-601 is equipped with heat dissipation to effectively dissipate the heat generated during the transfer, preventing the experiment from failing due to overheating. It has a temperature range of 5 °C to 40 °C and a relative moisture content of 20% to 80%. To ensure uniformity of pressure and field strength, the electrode is designed with a buckle locking mode and a plate electrode design. It works with standard laboratory reagents and consumables.
Specification
| Temperature Range |
5 to 40 ˚C |
| Relative Moisture |
20 to 80% |
| Blot Area |
15.5ⅹ11ⅹ2 cm |
| Blot Speed |
2 mini gels within 3 minutes, 4 mini gels or 2 midi gels within 7 minutes |
| Power |
Built-in integrated power supply, |
| voltage |
0 to 30V |
| current |
0 to 3A |
| Dimension |
290×220×200mm |
| Weight |
3.9kg |
| Blot System |
1 set |
Features
- It is designed with heat indulgence to effectively disperse the heat generated during the transfer, to avoid the failure of the experiment due to extreme temperature
- Two cassettes of the device can be controlled distinctly, that is, users can use one cassette or two cassettes simultaneously
- Two autonomous blot programmes can be used at the same time
- It has an exclusively designed high-efficient heat indulgence channel that releases the heat during the operation and ensures the reliability of the lab at low temperatures
- Blotting 2 mini gels inside 3 minutes, blotting 4 mini gels or 2 midi gels within 7 minutes
- Built-in integrated power supply, voltage 0 to 30V, and 1 V can be adjustable, current 0 to 3A, 0.1 adjustable
- Customer interface, 5-inch capacitive touch screen, sensitive touching screen, convenient operation. Running automatically
- The preset programme guides the lab design and modifies the programme manually based on the needs
- The buckle locking mode with plate electrode design ensures uniformity of pressure and field strength
- Configuration requirements 1 Blot System set
Application
Perform uniform transfers of proteins and nucleic acids from polyacrylamide and agarose gels in less than one hour
