Description :

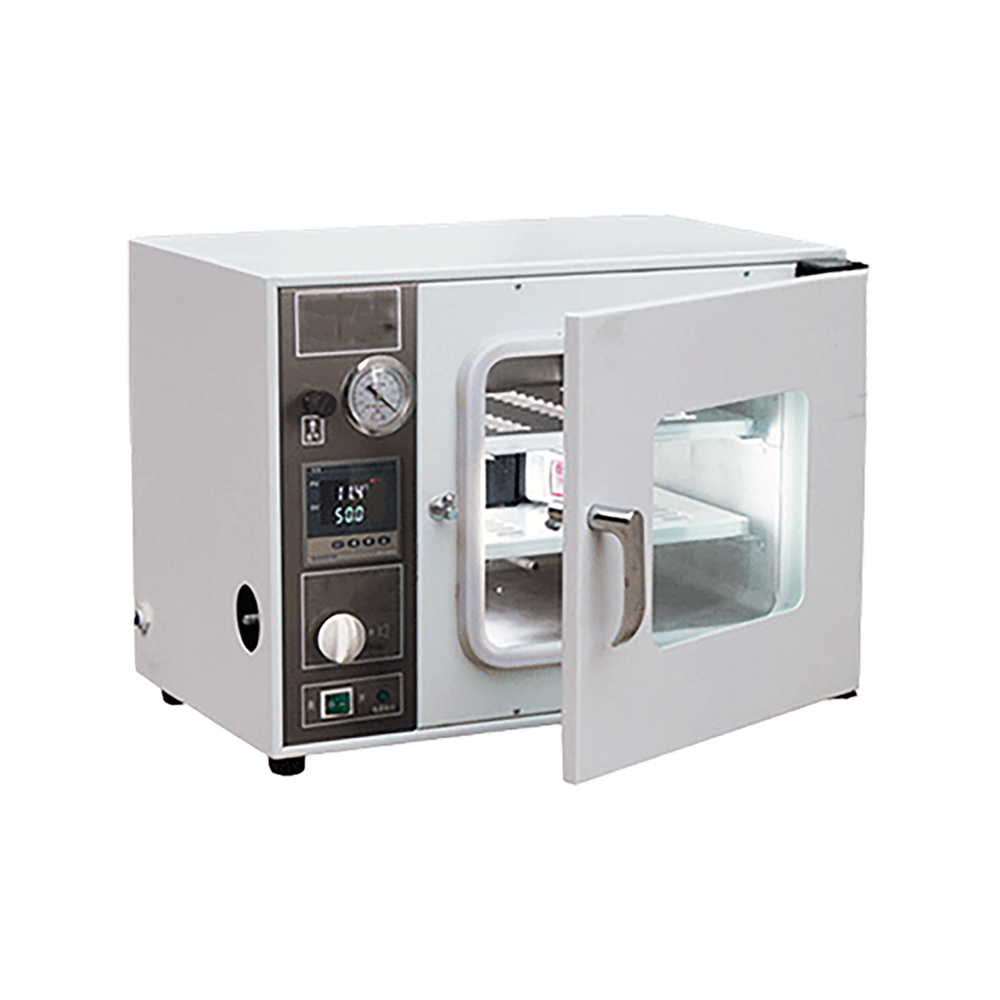

Vacuum Drying Oven TRVO-706 is a versatile device suitable for drying and sterilization. Developed specifically for drying heat-sensitive, degradable, or oxidizing materials. Its temperature is precisely controlled by a microcomputer, ensuring an accurate and reliable Range of Temperature Control RT+10 to 200℃. The measurement range displays on the LCD screen with the degree of vacuum is < 133 Pa, it is made of stainless steel.
Specification
| Range of Temperature Control |
RT+10 to 200℃ |
| Vacuum Degree |
<133Pa |
| Temperature Fluctuation |
±1% |
| Tray |
3 |
| Electrical Date |
220V,50HZ |
| InputPower |
2100 W |
| Material of Working Chamber |
Stainless steel |
| Working Size |
560×640×600 mm |
| Overall Dimension |
720×820×1750 mm |
Features
- Specifically designed for decomposable, voidable, dry, and heat-sensitive substances
- It can supply inert gas to the internal component
- It has a constant temperature timing and rapid warming
- Having an intellectual temperature correction system
- It has a digital LCD backlit display
- It has an overheating warning system
- It can dry some goods with complex compositions in particular
- The needing fora work chamber is a rectangle to achieve the maximum substantial
- The temperature is precisely and consistently controlled by a microcomputer temperature controller
- The bulletproof glass door leads to a clear observation of the particles within the working chamber
- The room door's airtightness can be adjustable
- The door has a silicon rubber door sealing loop
- Storage, heating, experimentation, and drying will all take place in an oxygen-free environment
- When comparewith the vacuum dry frame, the heat exchange time was reduced by much more than half
Application
A vacuum oven is widely applicable for drying and sterilization in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research, and environment protection.
