Description :

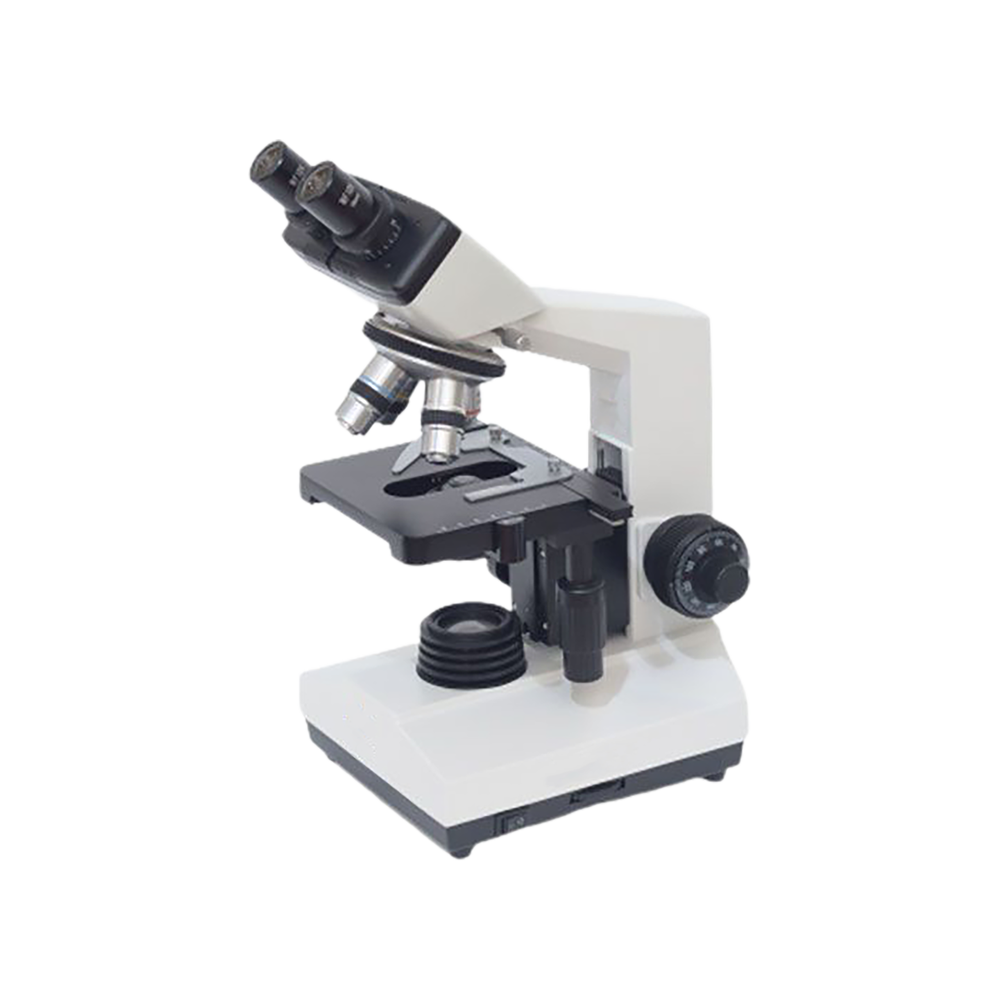

Biological Microscope TRBM-601 is a Sliding Binocular Head with LED Illumination and Brightness Adjustment that is leaned at 45° inter pupillary. Given a wide field eyepiece of WF10×18 mm. It has a strong square base, an agreeable and straightforward activity, and various embellishment collocations. It has a levelheaded as achromatic objective. Having with Fluorescent Viewing, Dark-field Viewing, Phase Contrast Viewing, and Camera.
Specification
| Viewing Head |
Sliding Binocular Head inclined at 45 °inter pupillary (55 to 75mm) |
| Eyepiece |
Wide Field eyepiece WF10×18mm |
| Nosepiece |
Quadruple Nosepiece |
| Objective |
Achromatic Objective 4X,10X,40X,100X |
| Stage |
Double Layers Mechanical Stage 140×135mm/ 75×50mm |
| Condense |
Abbe NA1.25 with Iris Diaphragm & Filter |
| Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm |
| Illumination |
LED Illumination, Brightness Adjustable, Halogen Lamp 100V 240V/ 6V20W, Plane-concave Mirror |
| Filter |
Blue Filter |
Features
- It is given as an Achromatic Objective
- The utilization of the Achromatic Objective focal point is a minimal expense and addresses the issues of the day by day fluorescence
- It is outfitted with a strong square base, gives an agreeable and basic activity, and numerous embellishment collocations that give you a straightforward and rich experience
- It has Fluorescent Viewing, Dark-field Viewing, Phase Contrast Viewing, and a Camera
- Single-channel fluorescent module/Dual channel fluorescent module
- Fluorescent Illumination: 100W Mercury Lamp Housing/5W LED Lamp Fluorescence channel bunch High transmission, high cut-off, and profound Removal of profundity channels are utilized to make the picture more splendid Dark field Viewing can be utilized to see blood or flagellum, and so forth fine construction Phase Contrast Viewing Operators can get a high-contrast picture of an impartial foundation shading whatever the amplifications are. It is appropriate to survey non-stained examples
Application
Used to concentrate on life forms and their essential cycles. Microscopes were utilized in this field range broadly, from moderately basic optical magnifying instruments to exceptionally progressed imaging systems utilized in cell research, measurable medication, and best-in-class high goal atomic investigations. The amplification of organic magnifying instruments is the proportion of the size of a picture to its comparing object.
