Description :

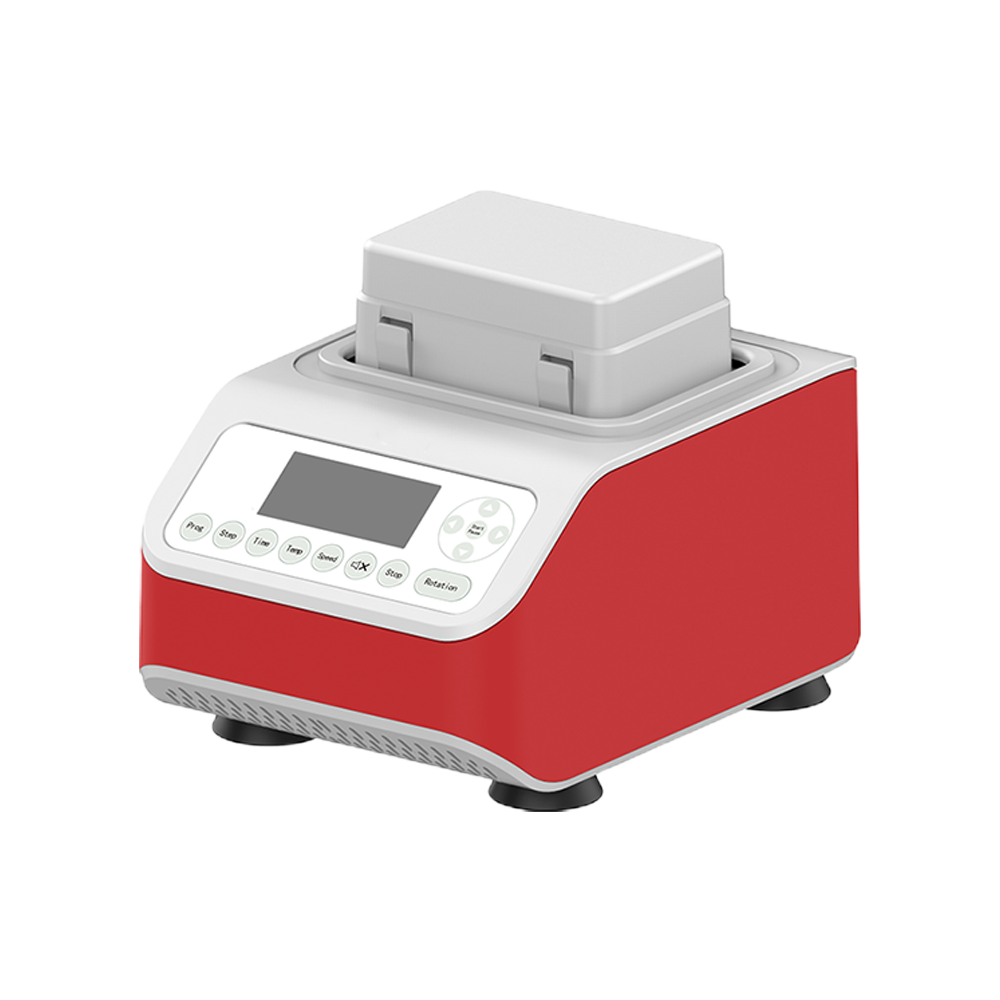

Constant Temperature Metal Bath TRCM-601 uses a simpler and more convenient temperature correction method. It can transport a wide range of modules. It has a programming number of 9 and operates at a temperature range of 5 to 40 ˚C. It has a patented module clamping, pressing method, and a temperature control range of 5 to 110 °C. It has an LCD screen with a touch keyboard for placing and operating parameters, and it is designed to be used in a metal bath. It can cool as well as heat.
Specification
| Temperature Control Range |
lowest is 25 ℃, highest is 110 ℃ |
| Temperature Range |
-5 ℃ / 110 ℃ |
| Temperature Control Accuracy 20 To 45 ℃ |
± 0.5 ℃ |
| Temperature Uniformity 20 To 45 ℃ |
± 0.5 ℃ |
| Working Environment Temperature |
5 to 40 ℃ |
| Working Environment Humidity |
0.8 |
| Maximum Heating Rate |
5.5 ℃/min |
| Maximum Cooling Rate |
5 ℃/min |
| Programming |
9 |
| Time Setting Range |
1min to 99 h 59 min |
| Display |
LCD |
| Input Voltage |
100 to 120V/220 to 240V, 50Hz/60Hz |
| Power |
180 W |
| Dimensions L×W×H |
186×267×145 mm |
Features
- The temperature adjustment range of 15 to 110 °C is excellent
- The maximum temperature accuracy is 0.5 °C
- It can transport a variety of modules
- Assist in the editing and storage of programs
- The temperature correction method is more straightforward and convenient
- The patented technique of clamping and pressing modules
- It Can be used for both cooling and heating
Application
The alternating temperature metal module, which is commonly used, is comprised from top to bottom. Widely used in sample storage, the preservation of enzymes and reactions, and the deformation process of nucleic acids and proteins, etc.
