Description :

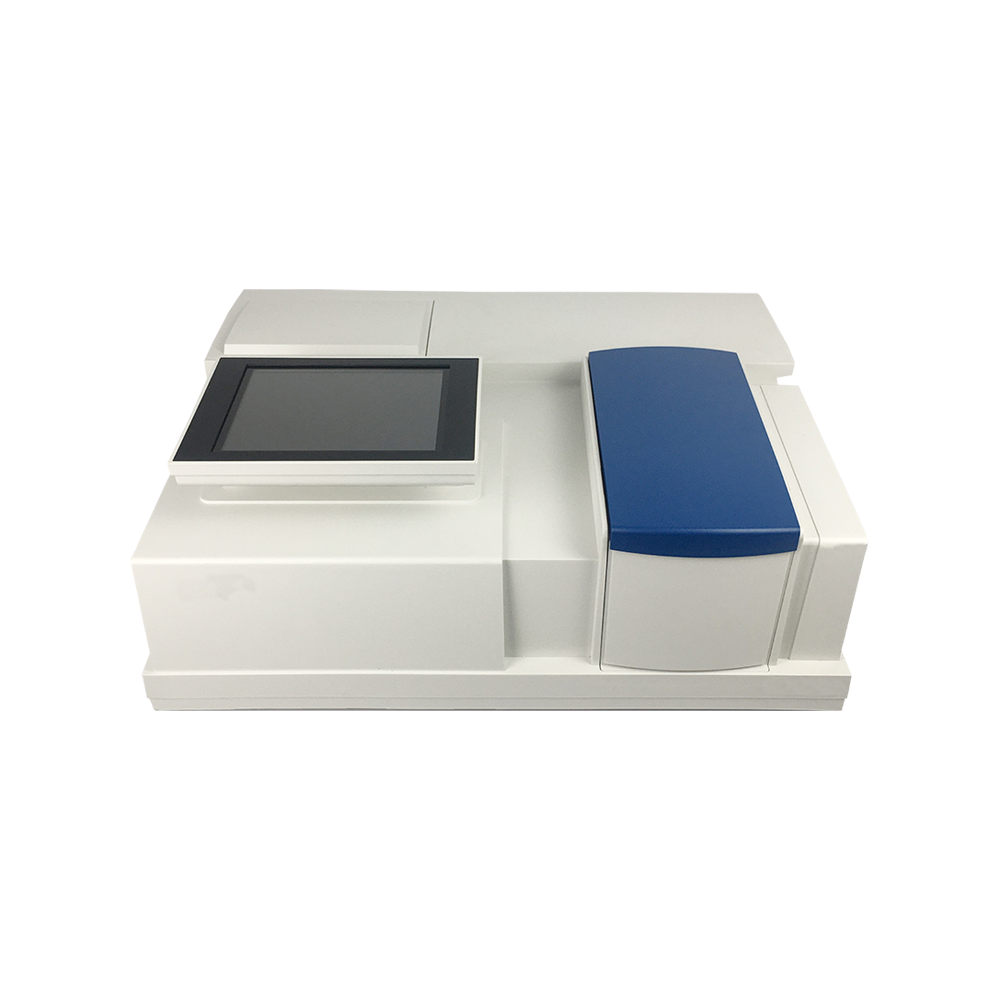

Double Beam UV VIS Spectrophotometer TRDUV-602 is a new optical platform with excellent metering accuracy and stability. With a wavelength range of 190 to 1100nm and a 5-speed adjustable bandwidth of 0.5nm, 1nm, 2nm, 4nm, 5nm, it is equipped with advanced hardware and software design. It has an 8-inch color touch screen and a user-friendly interface. It is simple to use. It has a photometric range of 0.0 to 200.0 percent T, -0.301 to 4.000A, 0.000 to 9999C, and a photometric accuracy of 0.3 percent T, 0.002Abs (0 to 0.5A), and 0.004Abs (0 to 0.5A) (0.5 to 1A).
Specification
| Spectrum Bandwidth |
0.5 nm, 1nm, 2 nm, 4 nm, 5 nm |
| Wavelength Range |
190 to 1100 nm |
| Monochromatic Type |
Czerny-Turner |
| Grating |
1600 lines/mm |
| Detector |
Silicon Photocell |
| Wavelength Accuracy |
± 0.3 nm |
| Wavelength Repeatability |
≤ 0.1 nm |
| Wavelength Scanning Speed |
Fast, medium, and slow |
| Light Source Switching Wavelength |
340 nm |
| Stray Light |
≤ 0.02% (measured by NaI at 220 nm) (measured at NaNO2 at 360 nm) |
| Photometric Range |
0.0 to 200.0% T -0.301 to 4.000 A 0.000 to 9999 C |
| Photometric Accuracy |
± 0.3% T ± 0.002Abs (0 to 0.5A) ± 0.004Abs (0.5 to 1A) |
| Photometric Repeatability |
≤ 0.15% T 0.001Abs (0 to 0.5A) 0.002Abs (0.5 to 1A) |
| Baseline Flatness |
≤ ± 0.0008A(200 to 1090 nm) |
| Noise |
100%(T) noise ≤ 0.1% (T), 0% (T) noise ≤ 0.02% (T) |
| Baseline Drift |
± 0.0004 Abs / h |
| Power |
AC220v± 22v, 50Hz± 1Hz, 200W |
| Light Source |
Hamamatsu D2 lamp, Osram halogen tungsten lamp. |
| Com Port |
USB |
| Packing Size |
740 mm×630 mm×450 mm |
| Weight |
35 Kg, 0.21 m³ |
Features
- New optical platform with excellent optical properties, metering performance, low stray light and noise, high meter reading precision, and reliability for the host system
- One-of-a-kind deuterium and tungsten lamp configuration method that enables the light source to automatically switch to the best position
- Makes it easier for users to operate, replace, and maintain the instrument conveniently, precisely, and securely
- Advanced hardware and software design, allowing the instrument to perform functions
- Automatic scanning of the measured spectrum and multi-wavelength measurement will provide excellent spectroscopic computation and storage capabilities, 13ᨂ kinetic measurement, curve fitting, derivative spectra, printing and storage of spectra, and data analysis
- The 8-icolorlour touch screen with a good user-machine interface is simple to use
- USB data transmission port
Application
Applicable to serve as the basic equipment for quality control, technical evaluation, and scientific research, and can be widely used in susceptibility testing, medicine and health, biochemistry, environmental monitoring, commodity inspection, petrochemical, and other fields.
