Description :

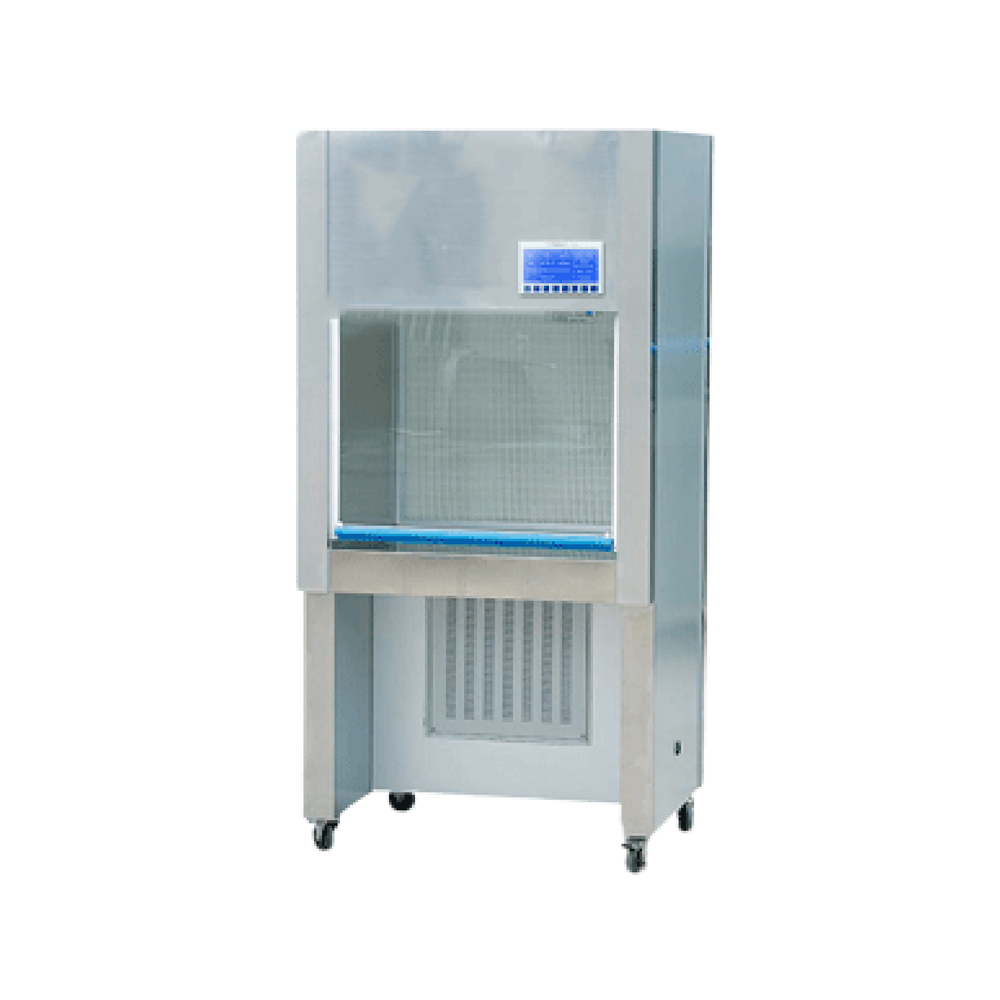

Vertical Air Laminar Flow Cabinet TRVLC-602 is an airflow-closed bench, designed with a stainless steel working space and a sliding glass door. It is equipped with a UV lamp and a fluorescent lamp. The average wind speed ranges from 0.25 to 0.45 m/s. It has a double-single dimension and comes with a primary filter and a HEPA filter. Intended with a digital display, shows the liquid crystal interference. Its maximum power consumption is 800 W.
Specification
| The Average Wind Speed |
0.25 to 0.45m/s |
| Noise |
≤62dB |
| Power Supply |
AC, 220 V/50Hz |
| Illumination |
≥300LX |
| Half Ventilation Peak Value |
≤ 3μm(XYZ direction) |
| Maximum Power Consumption |
800 W |
| Number Of Bacteria |
≤0.5per utensil. Hour (90mm utensil) |
| Specification And Number Of Fluorescent Lamp Or UV Lamp Of Ultraviolet Lights |
20w×1/ 20w×1 |
| Dimension Of Working Area(W1×D1×H1) |
1140×600×700 mm |
| Overall Dimension (W×D×H) |
1300×760×1760mm |
| Suited Number |
Double-single |
Features
- The vertical airflow and closed bench effectively prevent outside gas from entering
- The ability to operate the area, as well as the distinctive smell from harming the human body
- A wind volume adjustable fan system, a light-touch type switch, and a dual-speed voltage
- A regulation device is used to maintain a suitable wind speed in the working area
- it uses a super-thin aluminum-frame clapboard-free high-efficiency air filter
- Which shrinks the static-pressure tank to the smallest possible size, reducing the outer case's size
- Filters and electric components can be easily exchanged by opening the front cover directly
- An LED panel powers it with liquid crystal interference
- The work surface is made of stainless steel
Application
Clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy, chemical experiment and so on.
